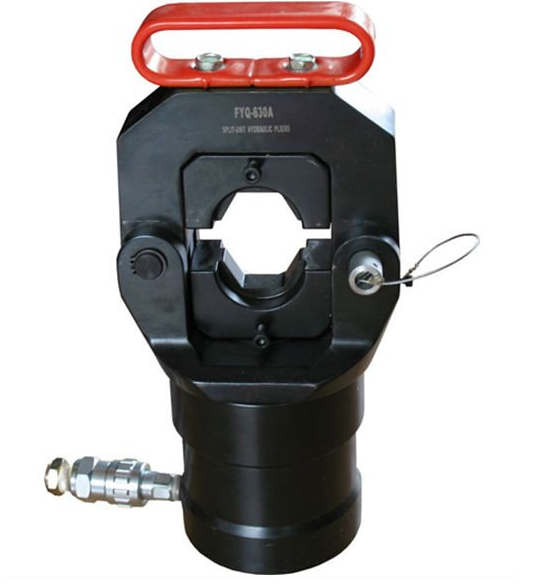

30 Ton Split Unit Hydraulic Cable Lug Crimping Tool CO-630 Crimping Rang From 150-630mm2

Name: 30 Ton Split Unit Hydraulic Cable Lug Crimping Tool CO630 Crimping Rang From 150630mm2
Brand: SHENHONG
Price: 1 USD

China 30 Ton Split Unit Hydraulic Cable Lug Crimping Tool CO-630 Crimping Rang From 150-630mm2 wholesale

Brand Name : SHENHONG

Model Number : CO-630

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 2pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000pcs per month

Delivery Time : 7days after payment

Packaging Details : standard export wooden case

Crimping range : 150-630mm2

Crimping force : 30T

Stroke : 25mm

Weight : 20kg

Package : steel case

Crimping type : hexagon crimping

Contact Now

30 Ton Split Unit Hydraulic Cable Lug Crimping Tool CO-630 Crimping Rang From 150-630mm2

Selection and use methods:

Firstly measure the external diameter of hard fittings,which is equal to press mould"A"dimension in principle,please choose applicable press mould from serial number table of common press mould according to external diameter of hardware

fittings and tool model.For example,YD-240/30 connection pipes,when steel bushing external diameter is 20mm,external

diameter of aluminum bushing pipe is 36mm and hydrostatic machine with 100 tons of discharging force is considered as a tool,it isadvisable to selection and use 100-G20 steel mould and 100-L36 for pressing purpose.

Function description:

It is specially made of high carbon steel raw material by means of CNC processing,with good quality and high tension

stress.Compression ratio of mould can be calculated according to the pressed objects;Single circuit can be furnished with

single circuit pump and double circuits can be furnished with double cicuits pump;In time of outdoor construction,engine

electric generator or engine pump can be furnished to make construction conducted in a quickest and safe way for only

8-12 seconds each time.Hardware fittings are manufactured in accordance with state standard and CNC linear cutting

dimension standard with precise accuracy degree.

1. Suitable for use in indoor&outdoor power transmission and distributionprojects.
2. Ddsigned for high voltge cablecouduits(10KV-500KV),wire holders.
3. Welcome to order special special specification tools.

Model	CO-630
Crimping range	150-630mm²
Crimping force	30T
Stroke	25mm
Accessories	150,185,240,300,400,500,630mm
Weight	20kg
Package	Wooden box
Crimping type	Hexagon crimping

30 Ton Split Unit Hydraulic Cable Lug Crimping Tool CO-630 Crimping Rang From 150-630mm2

Product Tags:

hydraulic compression tool

hydraulic lug crimping tool

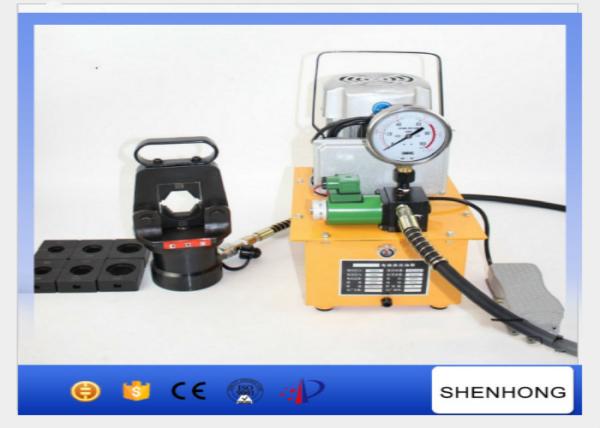

30 Ton Split Unit Hydraulic Cable Lug Crimping Tool CO-630 Crimping Rang From 150-630mm2 Images
